Magpul STR Collapsible AR-15 Buttstock - Mil-Spec or Commercial

Product Description

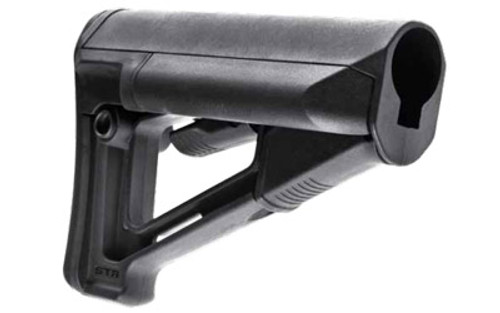

Magpul STR Storage/Type Restricted Collapsing Stock - Mil-Spec or Commercial

The Magpul STR (Storage/Type Restricted) is a drop-in replacement buttstock for AR15/M16 carbines using mil-spec or commercial sized receiver extension tubes. A storage-capable version of the CTR®, the STR has improved cheek weld and two water resistant battery tubes on a compact, reinforced polymer A-frame design.

A shielded operation lever and supplemental friction locking system prevent accidental operation and minimize excessive stock movement for enhanced weapon stability and accuracy.*

The STR incorporates two integral sling loops, a reversible push-button QD sling mount, and a replaceable 0.30" rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.

Features:

• Mounts on mil-spec or commercial sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others (please see the note below)
• Two water-resistant battery storage tubes located on the left and right sides of the stock
• Each tube will store up to two (2) CR123A lithium or AA batteries
• Tubes are accessible from the rear in any stock position via a hand-removable rubber plug
• Supplemental friction lock minimizes accuracy robbing wobble*
• Premium chrome-silicon lock spring provides positive locking and long service life
• Sloping cheek weld provides a wide contact surface for user comfort
• Shielded release latch prevents snagging and accidental operation
• Replaceable 0.30" Rubber Butt-Pad offers an anti-slip surface and increases impact protection
• Compatible with Magpul ASAP® and other receiver-mount sling attachments
• Sling Mounts
• Rear – Reversible QD swivel sling mount fits up to 1.5" push-button swivels (swivel not included)
• Rear/Bottom – 1.25" sling loops

Specifications

Mil-Spec:

• Weight: 0.77 lb.
• Weight, w/ Rec. Extension: 1.02 lb.
• Length, Maximum: 7.30 in.
• Width, Maximum: 2.58 in.
• LOP Adjustment Range: 3.25 in.
• LOP, M4 Collapsed: 11.10 in.
• LOP, M4 Extended: 14.35 in.

Commercial-Spec:

• Weight: 12.3 oz.
• Weight, w/receiver extension: 16.3 oz.
• Length, max: 7.3 in.
• Width, max: 2.6 in.
• LOP Adjustment Range: 3.8 in.
• LOP, M4 Collapsed: ~10.9 in.
• LOP, M4 Extended: ~14.7 in.
